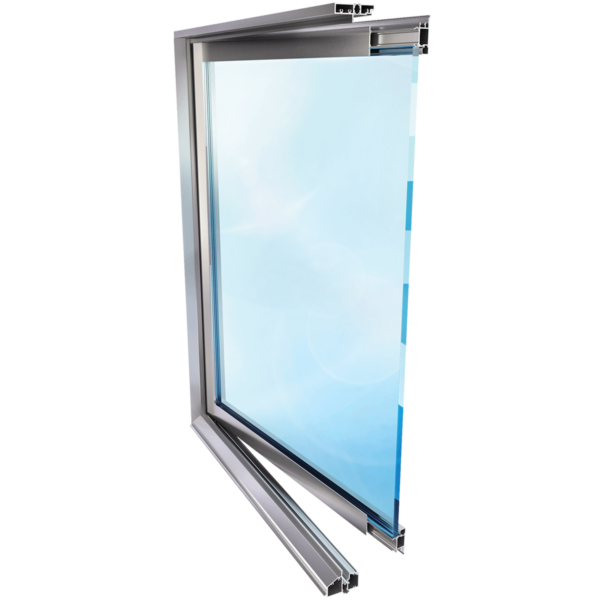

AD-375 Thermal Door & Frame

The AD-375 Thermal Door is a high performance thermal entrance product designed to meet or exceed today’s energy codes for entrances. The door is 2-5/8″ thick utilizing a 20mm thermal strut. Optional foam inserts are available in the 1″ glazed doors and are standard for 1-9/16″ glazing to increase thermal performance. Only insulated glazing may be used in the AD-375 Thermal Door and, when used in combination with Low-E glazing products, can match the thermal performance of many of today’s thermal curtain walls. The AD-375 Thermal Door is available as a single door, pair of doors or in sets of singles separated by a 2″ common lock mullion or 5-1/2″ common hinge mullion utilizing a 1″ x 4-1/2″ deep sub-frame around perimeter of openings.

AD 375 Thermal Door and Frame

Product Details

Click to expand [+] / collapse [-]. Click link on right to download file.

Literature
CAD Details
BIM Models
Specs
Structural Charts
Description
Download
1.5625in Glazing For Curtain Wall
SELECT
1.5625in Glazing For Storefront
SELECT
1in Glazing for Curtain Wall
SELECT
1in Glazing for Storefront
SELECT

N/A
