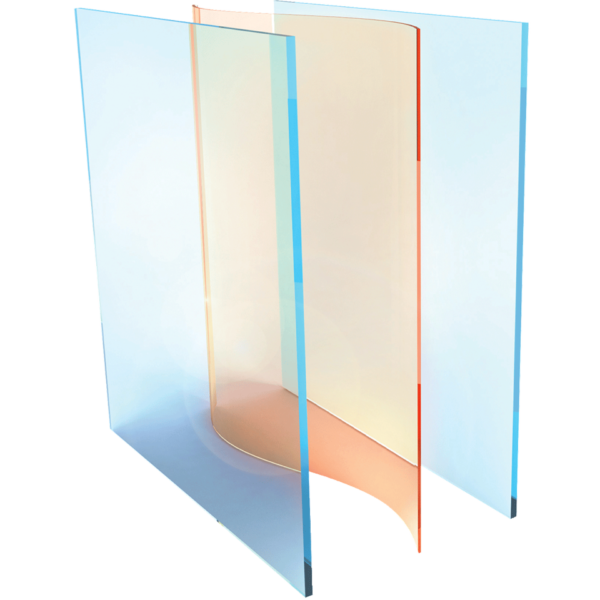

Sound Control
Shielding a building’s environment from increasing noise levels, especially near airports and busy highways, is a critical factor in the specification of glazing materials for both new and renovated structures. Laminated glass is a proven, effective solution for acoustical protection.
Capabilities [-]
Sound Control Capabilities
Laminated Glass: Sound Transmission Loss Data (1)
|
|||
1/3 Octaveband (HZ) | STC | OITC | Rw |
1/4″ RAL-TL85-169 |
31 | 29 | 32 |
1/2″ RAL-TL85-198 |
36 | 33 | 37 |
Lami-0.030″-Lami RAL-TL85-218 |
35 | 31 | 35 |
1/8″-0.030″-1/8″ RAL-TL85-170 |
35 | 31 | 35 |
1/8″-0.060″-1/8″ RAL-TL85-224 |
35 | 32 | 35 |
1/8″-0.045″-1/8″ RAL-TL85-234 |
35 | 31 | 35 |
3/16″-0.030″-3/16″ RAL-TL85-200 |
36 | 33 | 36 |
1/4″-0.030″-1/8″ RAL-TL85-229 |
36 | 33 | 36 |
1/4″-0.060″-1/8″ RAL-TL85-223 |
37 | 33 | 37 |
1/4″-0.030″-1/4″ RAL-TL85-225 |
38 | 34 | 38 |
1/4″-0.045″-1/4″ RAL-TL85-232 |
38 | 34 | 38 |
1/4″-0.060″-1/4″ RAL-TL85-228 |
39 | 34 | 39 |
3/8″-0.030″-1/4″ RAL-TL85-222 |
40 | 36 | 40 |
1/2″-0.060″-1/4″ RAL-TL85-230 |
41 | 36 | 41 |
(1) The data here is based on samples tested at Riverbank Acoustical Laboratories in accordance with ASTM E90-97, ASTM E413-87 and ASTM E1332-90 and are not guaranteed for all samples or applications.
Insulating Glass: Sound Transmission Loss Data(1)
|
|||
1/3 Octaveband (HZ) | STC | OITC | Rw |
1/8″-1/4″AS(2)-1/8″ (SEALED) RAL-TL85-212 |
28 | 26 | 30 |
1/8″-3/8″AS-1/8″ (SEALED) RAL-TL85-213 |
31 | 26 | 32 |
1/4″-1/2″AS-1/4″ (SEALED) RAL-TL85-294 |
35 | 28 | 35 |
3/16″-1″AS-3/16″ (SEALED) RAL-TL85-215 |
35 | 27 | 37 |
1/4″-1″AS-1/4″ (UNSEALED) RAL-TL85-293 |
37 | 30 | 37 |
3/16″-4″AS-3/16″ (UNSEALED) RAL-TL85-216 |
44 | 35 | 44 |
(1) The data here is based on samples tested at Riverbank Acoustical Laboratories in accordance with ASTM E90-97, ASTM E413-87 and ASTM E1332-90 and are not guaranteed for all samples or applications.
(2) Airspace
Laminated Insulating Glass: Sound Transmission Loss Data(1)
|
|||
1/3 Octaveband (HZ) | STC | OITC | Rw |
1/4″ Lam.-1/4″ AS(2)-1/8″ (SEALED) RAL-TL95-296 |
35 | 31 | 35 |
1/4″ Lam.-3/8″ AS-3/16″ (SEALED) RAL-TL85-189 |
37 | 31 | 37 |
1/4″ Lam.-1/2″ AS-3/16″ (SEALED) RAL-TL85-238 |
39 | 31 | 39 |
1/4″ Lam.-1/2″ AS-1/4″ (SEALED) RAL-TL85-235 |
39 | 31 | 39 |
3/8″ Lam.-1/2″ AS-1/4″ (SEALED) RAL-TL85-192 |
40 | 31 | 40 |
1/4″ Lam.-1″ AS-3/16″ (UNSEALED) RAL-TL85-239 |
42 | 33 | 42 |
1/4″ Lam.-2″ AS-3/16″ (UNSEALED) RAL-TL85-173 |
45 | 35 | 45 |
1/2″ Lam.-2″ AS-3/16″ (UNSEALED) RAL-TL85-194 |
46 | 38 | 46 |
1/2″ Lam.-2″ AS-3/8″ (UNSEALED) RAL-TL85-196 |
46 | 42 | 47 |
1/2″ Lam.-1″ AS-3/16″ (UNSEALED) RAL-TL95-298 |
47 | 36 | 47 |
1/4″ Lam.-4″ AS-3/16″ (UNSEALED) RAL-TL85-174 |
48 | 39 | 48 |
1/2″ Lam.-4″ AS-3/16″ (UNSEALED) RAL-TL85-195 |
49 | 41 | 49 |
1/2″ Lam.-4″ AS-3/8″ (UNSEALED) RAL-TL85-197 |
49 | 44 | 50 |
3/4″ Lam.-4″ AS-1/8″ (UNSEALED) RAL-TL85-240 |
49 | 40 | 49 |
(1) The data here is based on samples tested at Riverbank Acoustical Laboratories in accordance with ASTM E90-97, ASTM E413-87 and ASTM E1332-90 and are not guaranteed for all samples or applications.
(2) Airspace
Double-Laminated Insulating Glass: Sound Transmission Loss Data(1)
|
|||
1/3 Octaveband (HZ) | STC | OITC | Rw |
1/4″ Lam. 1/2″ AS(2)-1/4″Lam. (SEALED) RAL-TL85-172 |
42 | 33 | 42 |
1/4″ Lam. 1″ AS-1/4″ Lam. (UNSEALED) RAL-TL95-299 |
46 | 37 | 46 |
1/2″ Lam. 1″ AS-1/4″ Lam. (UNSEALED) RAL-TL85-236 |
46 | 34 | 46 |
1/2″-0.060″-1/4″ 4″ AS-1/4″-0.030″-1/4″ (UNSEALED) RAL-TL85-220 |
50 | 42 | 50 |
1/4″-0.060″-1/4″ 4″ AS-1/2″ Lam. (UNSEALED) RAL-TL85-221 |
50 | 42 | 50 |
1/2″Lam. 4″ AS-1/8″-0.060″-1/8″ (UNSEALED) RAL-TL85-237 |
51 | 44 | 51 |
1/4″ Lam. 4″ AS-1/4″ Lam. (UNSEALED) RAL-TL95-301A |
52 | 38 | 51 |
1/4″ Lam. 4″ AS-1/2″ Lam. (UNSEALED) RAL-TL95-302 |
53 | 45 | 53 |
(1) The data here is based on samples tested at Riverbank Acoustical Laboratories in accordance with ASTM E90-97, ASTM E413-87 and ASTM E1332-90 and are not guaranteed for all samples or applications.
(2) Airspace
Triple Insulating Glass: Sound Transmission Loss Data(1)
|
|||
1/3 Octaveband (HZ) | STC | OITC | Rw |
1/4″-1/2″ AS-1/4″-1/2″ AS-1/4″ (SEALED) RAL-TL95-294 |
39 | 31 | 39 |
1/4″ Lam.-1/2″ AS(2) 1/4″Lam.-1/2″ AS-1/4″Lam. (UNSEALED) RAL-TL95-295 |
44 | 33 | 44 |
1/4″-1″ AS-1/4″-1/2″ AS-1/4″ (UNSEALED) RAL-TL95-297 |
46 | 37 | 47 |
1/4″ Lam.-1″ AS-1/4″ Lam. 1/2″ AS-1/4″ Lam. (UNSEALED) RAL-TL95-300 |
49 | 39 | 49 |
(1) The data here is based on samples tested at Riverbank Acoustical Laboratories in accordance with ASTM E90-97, ASTM E413-87 and ASTM E1332-90 and are not guaranteed for all samples or applications.
(2) Airspace
Glass Colors [-]
Laminated Glass Colors
Oldcastle BuildingEnvelope® offers a comprehensive line of laminated glazing solutions including security glazing. The glass types listed below are included in the Laminated Glass offering. Oldcastle BuildingEnvelope® offers a variety of glass products to meet your architectural glazing design needs. Please contact Oldcastle BuildingEnvelope® for product availability and performance data as this information is subject to change without notice.
Laminated architectural glass can be fabricated using various glass types, including low-e, clear, low-iron, tinted, reflective, patterned or wired glass to achieve desired aesthetics or to improve solar control and thermal performance. Mass pigmented and decorative interlayers can also be used to provide a wide range of effects.
For monolithic, laminated or insulating glass unit performance data, please go to SystemSelect™, our on-line glass performance calculator.
The tables below include a selection of the most common colors available. For full details of the decorative interlayers including Vanceva® Color, Pattern, Metallic and Image see the decorative section
Assistance Options:
- Call toll-free, 866-653-2278.
- Send e-mail to Technical Support.
Clear Glass Products |
Laminated 1/8″ Clear – 0.030″ Clear PVB – 1/8″ Clear |
Laminated 1/8″ Clear – 0.060″ Clear PVB – 1/8″ Clear |
Laminated 1/8″ Clear – 0.090″ Clear PVB – 1/8″ Clear |
Laminated 1/8” Clear – 0.035” SentryGlas® – 1/8” Clear |
Laminated 1/8” Clear – 0.060” SentryGlas® – 1/8” Clear |
Laminated 1/8” Clear – 0.090” SentryGlas® – 1/8” Clear |
Laminated 1/8″ Clear – 0.100″ Saflex® HP Clear PVB – 1/8″ Clear |
Laminated 1/8″ Clear – 0.075″ StormGlass™ – 1/8″ Clear |
Laminated 3/16″ Clear – 0.030″ Clear PVB – 3/16″ Clear |
Laminated 3/16″ Clear – 0.060″ Clear PVB – 3/16″ Clear |
Laminated 3/16″ Clear – 0.090″ Clear PVB – 3/16″ Clear |
Laminated 3/16” Clear – 0.035” SentryGlas® – 3/16” Clear |
Laminated 3/16” Clear – 0.060” SentryGlas® – 3/16” Clear |
Laminated 3/16” Clear – 0.090” SentryGlas® – 3/16” Clear |
Laminated 3/16″ Clear – 0.100″ Saflex® HP Clear PVB – 3/16″ Clear |
Laminated 3/16″ Clear – 0.075″ StormGlass™ – 3/16″ Clear |
Laminated 1/4″ Clear – 0.030″ Clear PVB – 1/4″ Clear |
Laminated 1/4″ Clear – 0.060″ Clear PVB – 1/4″ Clear |
Laminated 1/4″ Clear – 0.090″ Clear PVB – 1/4″ Clear |
Laminated 1/4” Clear – 0.035” SentryGlas® – 1/4” Clear |
Laminated 1/4” Clear – 0.060” SentryGlas® – 1/4” Clear |
Laminated 1/4” Clear – 0.090” SentryGlas® – 1/4” Clear |
Laminated 1/4″ Clear – 0.100″ Saflex® HP Clear PVB – 1/4″ Clear |
Laminated 1/4″ Clear – 0.075″ StormGlass™ – 1/4″ Clear |
White Glass Products |
Laminated 1/8″ Clear – 0.015″ Vanceva® Polar White (220700) PVB + 0.015″ Saflex® Clear PVB – 1/8″ Clear |
Laminated 1/8″ Clear – 0.030″ Vanceva® Arctic Snow (216500) White PVB – 1/8″ Clear |
Laminated 1/8″ Clear – 0.030″ Vanceva® Cool White (218000) PVB – 1/8″ Clear |
Laminated 1/8″ Clear – 0.030″ Trosifol® Translucent White (2165) White PVB – 1/8″ Clear |
Laminated 1/8″ Clear – 0.030″ Trosifol® Soft White (2180) White PVB – 1/8″ Clear |
Grey Glass Products |
Tint |
Laminated 1/8″ Clear – 0.030″ Saflex® Medium Gray (654400) PVB – 1/8″ Clear |
Laminated 1/8″ Clear – 0.015″ Vanceva® Evening Shadow (835000) PVB + 0.015″ Saflex® Clear PVB – 1/8″ Clear |
Laminated 1/8″ Clear – 0.015″ Vanceva® Smoke Gray (837800) PVB + 0.015″ Saflex® Clear PVB – 1/8″ Clear |
Laminated 1/8″ Clear – 0.030″ Trosifol® Gray (6544) PVB – 1/8″ Clear |
Laminated 1/8″ Gray – 0.060″ Clear PVB – 1/8″ Clear |
Laminated 1/8″ Gray – 0.060″ Clear PVB – 1/8″ Gray |
Laminated 3/16″ Gray – 0.060″ Clear PVB – 3/16″ Clear |
Laminated 3/16″ Gray – 0.060″ Clear PVB – 3/16″ Gray |
Laminated 1/4″ Gray – 0.060″ Clear PVB – 1/4″ Clear |
Laminated 1/4″ Guardian MidnightGray™ High Performance Tint – 0.060” Clear PVB – 1/4″ Clear |
Laminated 1/4″ Pilkington SuperGrey™ High Performance Tint – 0.060″ Clear PVB – 1/4″ Clear |
Laminated 1/4″ Vitro Graylite® II High Performance Tint – 0.060″ Clear PVB – 1/4″ Clear |
Reflective |
Laminated 1/4″ Vitro Solarcool® Gray Reflective #2 – 0.060″ Clear PVB – 1/4″ Clear |
Bronze Glass Products |
Tint |
Laminated 1/8″ Clear – 0.030″ Saflex® Light Bronze (645200) PVB – 1/8″ Clear |
Laminated 1/8″ Clear – 0.030″ Trosifol® Bronze (6452) PVB – 1/8″ Clear |
Laminated 1/8″ Bronze – 0.060″ Clear PVB – 1/8″ Clear |
Laminated 1/8″ Bronze – 0.060″ Clear PVB – 1/8″ Bronze |
Laminated 3/16″ Bronze – 0.060″ Clear PVB – 3/16″ Clear |
Laminated 3/16″ Bronze – 0.060″ Clear PVB – 3/16″ Bronze |
Laminated 1/4″ Bronze – 0.060″ Clear PVB – 1/4″ Clear |
Reflective |
Laminated 1/4″ Vitro Solarcool® Bronze Reflective #2 – 0.060″ Clear PVB – 1/4″ Clear |
Green Glass Products |
Tint |
Laminated 1/8″ Green – 0.060″ Clear PVB – 1/8″ Clear |
Laminated 1/8″ Green – 0.060″ Clear PVB – 1/8″ Green |
Laminated 3/16″ Green – 0.060″ Clear PVB – 3/16″ Clear |
Laminated 3/16″ Green – 0.060″ Clear PVB – 3/16″ Green |
Laminated 1/4″ Green – 0.060″ Clear PVB – 1/4″ Clear |
Laminated 1/4″ Pilkington EverGreen™ High Performance Tint – 0.060″ Clear PVB – 1/4″ Clear |
Laminated 1/4″ Vitro Atlantica® High Performance Tint – 0.060″ Clear PVB – 1/4″ Clear |
Reflective |
Laminated 1/4″ Vitro Vistacool® Atlantica® Reflective #2 – 0.060″ Clear PVB – 1/4″ Clear |
Blue-Green Glass Products |
Tint |
Laminated 1/8″ Clear – 0.030″ Saflex® Medium Blue-Green (377300) PVB – 1/8″ Clear |
Laminated 1/8″ Clear – 0.030″ Trosifol® Light Blue-Green (3773) PVB – 1/8″ Clear |
Laminated 1/4″ Pilkington Optifloat™ Blue-Green Tint – 0.060″ Clear PVB – 1/4″ Clear |
Laminated 1/4″ Vitro Azuria® High Performance Tint – 0.060″ Clear PVB – 1/4″ Clear |
Reflective |
Laminated 1/4″ Vitro Solarcool® Azuria® (2) – 0.060″ Clear PVB – 1/4″ Clear |
Blue Glass Products |
Tint |
Laminated 1/8″ Clear – 0.015″ Vanceva® Aquamarine (827800) PVB + 0.015″ Saflex® Clear PVB – 1/8″ Clear |
Laminated 1/8″ Clear – 0.015″ Vanceva® Sapphire (825000) PVB + 0.015″ Saflex® Clear PVB – 1/8″ Clear |
Laminated 1/8″ Clear – 0.015″ Vanceva® True Blue (841400) PVB + 0.015″ Saflex® Clear PVB – 1/8″ Clear |
Laminated 1/4″ Pilkington Arctic Blue™ – 0.060″ Clear PVB – 1/4″ Clear |
Laminated 1/4″ Vitro Solarblue® – 0.060″ Clear PVB – 1/4″ Clear |
Laminated 1/4″ Vitro Pacifica® High Performance Tint – 0.060″ Clear PVB – 1/4″ Clear |
Reflective |
Laminated 1/4″ Vitro Solarcool® Pacifica® Reflective #2 – 0.060″ Clear PVB – 1/4″ Clear |
Laminated 1/4″ Vitro Solarcool® Solarblue® Reflective #2 – 0.060″ Clear PVB – 1/4″ Clear |
Laminated 1/4″ Vitro Vistacool® Pacifica® Reflective #2 – 0.060″ Clear PVB – 1/4″ Clear |
