Signature Series 3375

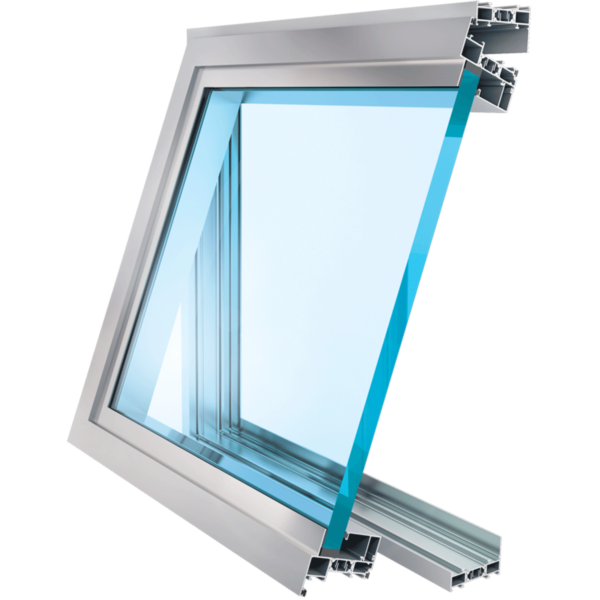

The Signature Series 3375 utilizes Polyamide thermal break technology allowing for dual color and finish combinations. Lap sash-to-frame design utilizes state of the art manufacturing techniques to deliver performance, configurations, flexibility, competitive cost and reduced lead times.
Product Features [-]
- Frame: 3-3/8″ depth
- Sash 3-11/16″ depth
- Tubular sash and meeting rails
- Sealing return frame legs
- Lap sash to frame
- Frame is corner-keyed, sealed and hydraulically staked
- Polyamide thermal break
- Sash is corner-keyed, sealed and hydraulically staked
- Replaceable, high quality compression seals
- Stainless steel four-bar hinges
- High quality multi-point locks
- In-house anodized and organic finishes
Product Performance [-]
- Air Infiltration: <.10 CFM/sq.ft. (6.24 PSF) per ASTM E283
- Static Water: 15 PSF per ASTM E331
- Deflection Load: +/-100 PSF per ASTM E330
- Structural Load +/- 150 PSF per ASTM E331
Product Details
Click to expand [+] / collapse [-]. Click link on right to download file.
Literature
CAD Details
BIM Models
Specs
Structural Charts
Description
Download
Signature Series 3375 Standard Details
SELECT
Signature Series 3375 Receptor Details
SELECT
Fixed by Fixed by Inswinging Casement
SELECT
Fixed by Fixed by Outswinging Casement
SELECT
Fixed over Fixed
SELECT
Fixed over Inward Projected
SELECT
Fixed over Outward Projected
SELECT
Inswinging Casement - Curtain Wall Framing
SELECT
Inswinging Casement - by Inswinging Casement
SELECT
Inward Projected - Curtain Wall Framing
SELECT
Inward Projected by Inward Projected
SELECT
Inward Projected over Inward Projected
SELECT
Outswinging Casement - Curtain Wall Framing
SELECT
Outswinging Casement by Outswinging Casement
SELECT
Outward Projected- Curtain Wall Framing
SELECT
Outward Projected by Outward Projected
SELECT
Outward Projected over Outward Projected
SELECT
Single- - Inswinging Casement
SELECT
Single - Inward Projected
SELECT
Single - Outswinging Casement
SELECT
Single - Outward Projected
SELECT
N/A
