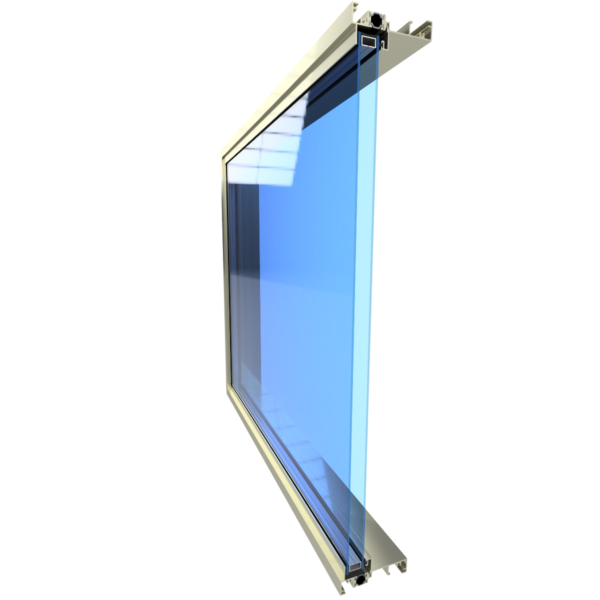

Signature Series Fixed
The Signature Series 4″ Fixed utilizes Polyamide thermal break technology allowing for high thermal requirements and dual color and finish combinations.
Product Features [-]
- Frame: 4″ depth
- Multiple stacking options
- Polyamide thermal break
- High thermal requirements and dual finish capabilities
Product Performance [-]
- Air Infiltration: <.06 CFM/sq.ft. (6.24 PSF) per ASTM E283
- Static Water: 15 PSF per ASTM E331
- Deflection Load: +/-150 PSF per ASTM E330
- Structural Load +/- 225 PSF per ASTM E330
- CSA A440-00 Rating; B7-C5
Product Details
Click to expand [+] / collapse [-]. Click link on right to download file.
Literature
CAD Details
BIM Models
Specs
Structural Charts
Description
Download
Signature Fixed 4" Accessories [DWG]
SELECT
Signature Fixed 4" FX001 [DWG]
SELECT
Signature Fixed 4" FX004 [DWG]
SELECT
Signature Series Fixed Fixed Over Fixed
SELECT
Signature Series Fixed Single Fixed
SELECT
N/A
