Signature Series 12PL / 14PL / 16PL

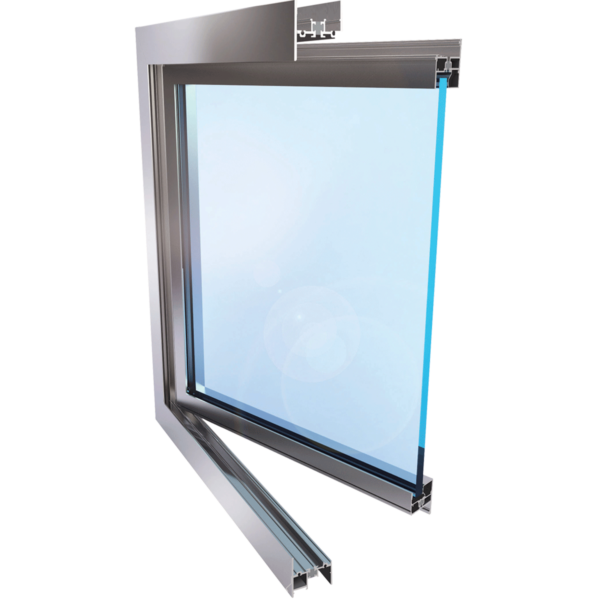

The 12PL-14PL-16PL offer enhanced architectural performance. Overlap sash-to-frame design utilizes state of the art manufacturing techniques to deliver performance, configurations, flexibility, competitive cost and reduced lead trims. For larger unsupported spans, 3-1/2" and 4-1/2" depth framing members are available to provide increased structural integrity.

Signature Series 12PL 14PL 16PL

Product Features [+][-]

  • Frame: 3-3/8" depth
  • Sash 3-11/16" depth
  • Tubular sash and meeting rails
  • Sealing return frame legs
  • Lap sash to frame
  • Frame is corner-keyed, sealed and hydraulically staked
  • Polyamide thermal break
  • Sash is corner-keyed, sealed and hydraulically staked
  • Replaceable, high quality compression seals
  • Stainless steel four-bar hinges
  • High quality multi-point locks
  • In-house anodized and organic finishes

Product Performance [+][-]

  • Air Infiltration: <.10 CFM/sq.ft. (6.24 PSF) per ASTM E283
  • Static Water: 15 PSF per ASTM E331
  • Deflection Load: +/-100 PSF per ASTM E330
  • Structural Load +/- 150 PSF per ASTM E331

Product Details

Click to expand [+] / collapse [-]. Click link on right to download file.

Literature
CAD Details
BIM Models
Specs
Structural Charts
Description
Download
12PL FX004
SELECT
12PL IC001
SELECT
12PL IP001
SELECT
12PL OC001
SELECT
12PL OP001
SELECT
14PL FX004
SELECT
14PL IC001
SELECT
14PL IP001
SELECT
14PL OC001
SELECT
14PL OP001
SELECT
16PL FX004
SELECT
16PL IC001
SELECT
16PL IP001
SELECT
16PL OC001
SELECT
16PL OP001
SELECT

N/A
