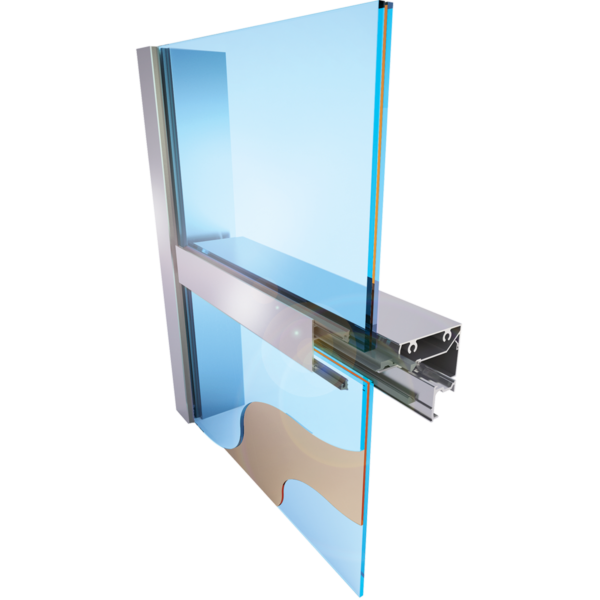

RW-5000 StormMax®

Oldcastle BuildingEnvelope® Series RW-5000 hurricane impact resistant system represents the latest in product development technology. This system was designed to meet the most demanding requirements of the Florida and International building codes. The RW-5000 successfully passed a series of large and small missile impact and cyclic wind tests with a variety of impact-resistant glass.

RW 5000 StormMax

Product Features [+][-]

  • 2-1/2″ sight lines 5″ depth
  • Interior Glazed Front Set
  • 9/16″ Monolithic Laminated Glazing
  • Screw Spline Fabrication
  • Wet Glazed
  • Preglazed
  • Factory finishes Kynar 500 Hylar 500
  • Finishes meeting all provisions of AAMA 605.2-94 and AAMA 2805-98
  • Factory anodized finishing

Product Performance [+][-]

  • Air Infiltration – Passed at 6.24 PSF per TAS-202 and ASTM E 283
  • Static Water – 15 PSF per TAS-202 and ASTM E 331
  • Structural Load – Tested up to +70 / -80 PSF per TAS-202 and ASTM E 330
  • Large & Small Missile Impact and Cycling Tested up to +70 / -80 PSF per TAS-201, 203 and ASTM E 1886

Product Testing [+][-]

  • Florida Building Code TAS-201, TAS-202, TAS-203
  • ASTM E 1886, E 1996
