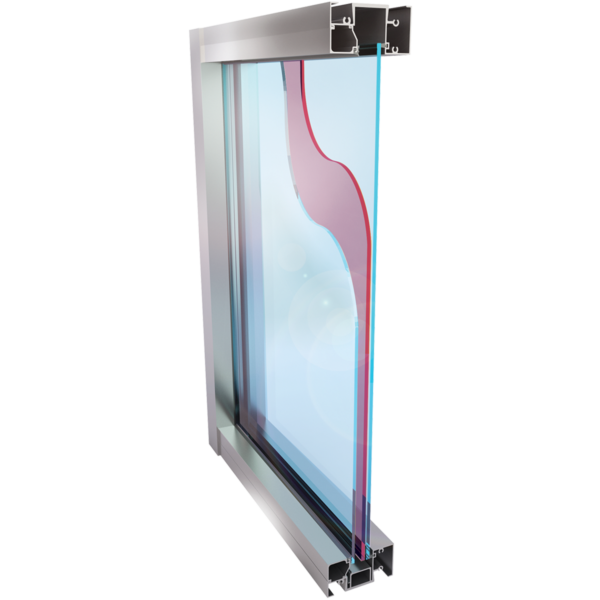

FG-5100 StormMax®

The FG-5100 system is an impact resistant storefront system for insulated impact glass 1-1/4" to 1-5/16" thick. This system meets the most demanding requirements of the South Florida and International Building codes. The system is unique in that it offers a dry glaze option for large missile impact.

Storefronts FG 5100 StormMax

Product Features [+][-]

  • 2-1/2" sight lines 5" depth
  • Exterior Glazed Center Set
  • 1-5/16" Insulating Laminated Glazing
  • Screw Spline Fabrication
  • Dry or Wet Glazed Options
  • Corner Mullion Option
  • Can incorporate MSD-375 Entrances
  • Factory finishes Kynar 500 Hylar 500
  • Finishes meeting all provisions of AAMA 605.2-94 and AAMA 2805-98
  • Factory anodized finishing

Product Performance [+][-]

  • Air Infiltration – Passed at 6.24 PSF per TAS-202 and ASTM E 283
  • Static Water – 15 PSF per TAS-202 and ASTM E 331
  • Structural Load – Tested up to +70 / -80 PSF per TAS-202 and ASTM E 330
  • Large & Small Missile Impact and Cycling - Tested up to +70 / -80 PSF per TAS-201, 203 and ASTM E1886

Product Testing [+][-]

  • Miami / Dade County
  • Florida Building Code TAS-201, TAS-202, TAS-203
  • ASTM E 1886, E 1996
