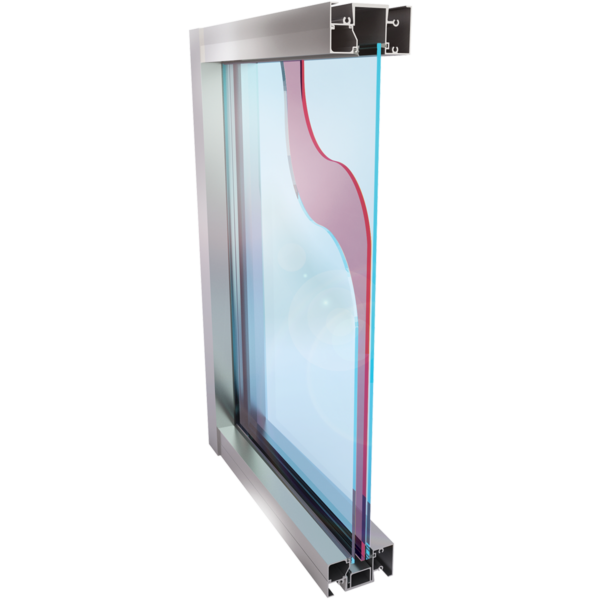

FG-5100 BlastMax®

This storefront has been tested in accordance with the ASTM F 1642-04 DoD UFC 4-010-01 GSA / ISC Standard Test Method.

GF 5100 BlastMax

Product Features [+][-]

  • System dimensions 2-1/2" x 5"
  • 1-1/4" laminated insulating glass
  • Exterior glazed
  • Structural silicone glazed
  • No exposed fasteners
  • Screw spline joinery
  • EZ punch capability
  • Integration of MSD-375 BlastMax® entrances
  • Use of energy absorbing anchor technology
  • Optional glazing and fastening to meet both blast & hurricane test standards
  • Factory painted Kynar 500 Hylar 500 finishes meeting all provisions of AAMA 605.2-94 and AAMA 2805-98
  • Factory anodized finishing
  • ASTM F1642 compliant
  • UFC (DoD) 4-010-01 compliant
  • GSA / ISC compliant

Product Performance [+][-]

  • Blast Resistance
  • Air Infiltration – <.06 CFM/sq.ft. PSF and 6.24 PSF per ASTM E 283
  • Static Water – 15 PSF per ASTM E 331
  • Deflection Load – 30 PSF per ASTM E 330
  • Structural Load – 45 PSF per ASTM E 330
  • ASTM F 1642 – Minimal hazard; UFC 4-010-01 Level of protection - Low; GSA Performance Condition – 3b
  • Blast and Hurricane Resistance
  • Air Infiltration – <.06 CFM/sq.ft. PSF and 6.24 PSF per ASTM E 283
  • Static Water – 15 PSF per ASTM E 331
  • Structural Load – +70 / -80 PSF per ASTM E 330
  • ASTM F 1642 – No hazard; UFC 4-010-01 Level of protection - High; GSA Performance Condition – 2
  • Large Missle and Cycling – +70/-80 PSF per TAS-201, TAS-203 and ASTM E1886, E1996

Product Details

Click to expand [+] / collapse [-]. Click link on right to download file.

Literature
CAD Details
BIM Models
Specs
Structural Charts
Description
Download
FG-5100 - Wet Glazed – 2-1/2" x 5"- Insulating Laminated Glass - Standard Anchor - Energy Absorbing Anchor
